Sesto - Private Phone Booth For Single Person
SKU Code:SIAG01N
Choose a Configuration:
Delivery times are usually 3-4 weeks. Please contact our office on info@auraadesign.co.uk or 0203 915 8008 for lead time.
More Information
Details
- Extrenal Walls: Upholstered with fabric, Melamine, Upholstered with fabric. Rear wall with glass, Melamine. Rear wall with glass.
- 5 Panels upholstered with fabric : Welded frame is made of metal tube 40x20mm. Angular brackets are made of 40x40 mm powder coated metal tubes.
- Woktop: 12mm MFC (melamine). Covered with 3mm foam. Upholstered with fabric. Plastic feet with height levelling (+30mm).
- 1 Solid panel from melamine: Welded frame is made of metal tube 40x20 mm. Angular brackets are made of 40x40 mm powder coated metal tubes.
- Walls with glass panes: Welded frame is made of powder coated metaltube 40x20 mm. Inside gasket is made of 12mm MFC (melamine) with 1mm ABS edging Front sides and top of the metal frame are covered with 16mm MFC (melamine) with 1mm ABS edging.
- Power unit for media wall: AC power sockets 100-240 V. 1 Integrated USB fast charger (Type A+C, max 5A). 1 LAN outlet (CAT6 RJ45) with 2m flylead. Dimensions: 260x60x45 mm. Powder coated metal frame 317x119x40 mm, made from 2mm metal sheet. Mounting in 300x110 mm cut-out. For More Options. Please contact our office on info@auraadesign.co.uk or 0203 915 8008 for lead time.
- Wall with control unit: Top front panel is made of 16mm MFC (melamine) with 1mm ABS edging. Bottom front panel with hinges is made of 16mm MFC with 1mm ABS edging. Sides and internal construction parts made of 16mm MFC with 0.5mm ABS edging Ventilation and lighting dimming knobs are made of PA 2200 (nylon).
- Door: Left-handed or right-handed option. Powder coated metal door frame is made of 40x40 mm tube and 40x8 mm steel rod. Aluminium profiles with PVC sealing fixed to internal sides and top and bottom of door frame. Top of the metal frame is covered with 16mm MFC (melamine) with 1mm ABS edging . 8mm TSG (tempered safety glass), clear.
- Lighting: 3 x LED modules (8.92W) colour temperature approx. 3000K dimmable. 3 x LED housing (asymmetrical) made of aluminium. Replacement for LED mo.
- Celing: Double layered ceilings are made of 12mm top and 16mm bottom MFC (melamine) panels with 1mm ABS edging
- Ventilation: 2 x air supply fans are located in the ceilings. 2 x air exhaust slots are located in central segment of the ceilings for natural ventilation. Maximum airflow approx. 200m³/h.
- Table Tabletop: 16mm MFC (melamine) with 1mm ABS edging. Box for wires (135x150x100 mm) underneath the table top is made of 1mm powder coated metal sheet.
- Fabric Finish: Band A (Berta), Band B (Step/Step Melange), Band C (Synergy).
- MFC Finish: Band A ( Whitened Oak, Amber Oak, White, Pearl Grey, Dark Grey), Band B (Sand Ash, Dark Walnut, Grey Wood, Cubanit Grey, Black).
- Material: MFC and Fabric.

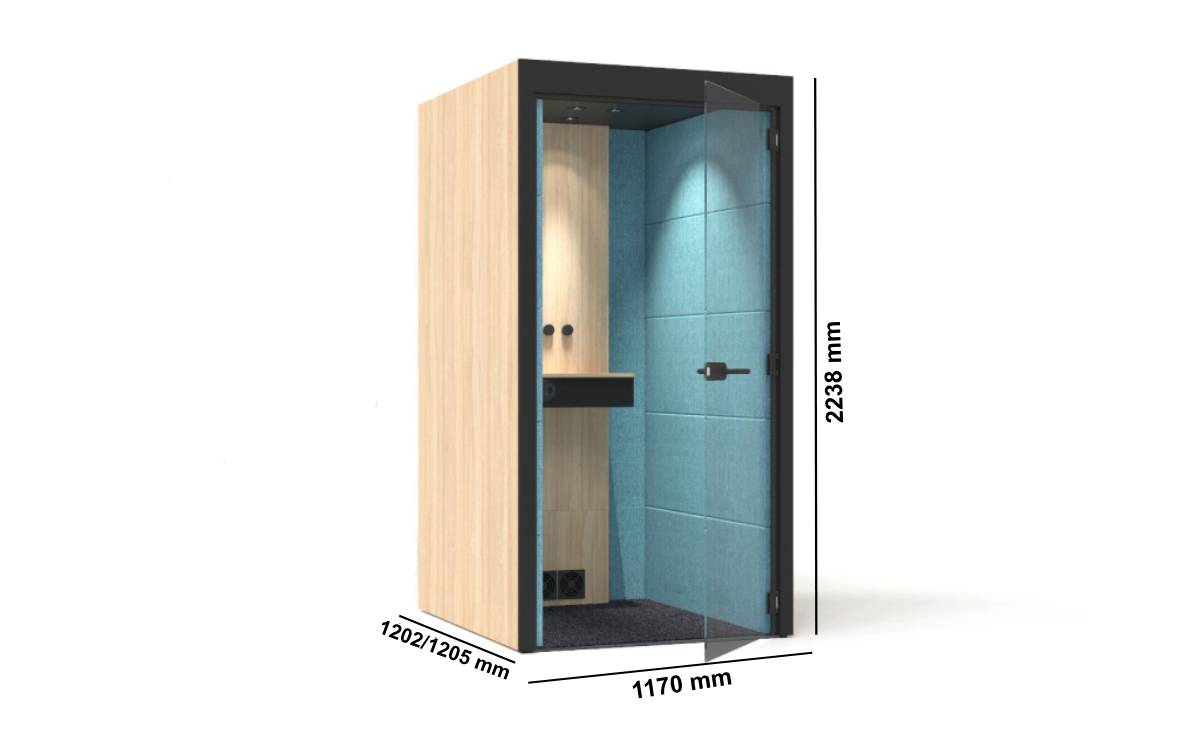

Dimensions
Available In:
Length: 1170 mm Depth: 1202/1205 mm Height: 2238 mm
